CSX-1641 1U

ASI to Gig-E Aggregator

WooshCom's 1U chassis is the perfect solution for the operator who likes clean headend wiring. It allows the typical 18 to 20 satellite receivers that are in a rack to have their ASI's combined together while keeping all the wiring in the rack. The entire contents of the satellite receivers is then provided on a single Gig-E connection coming out of the rack.  Multiple racks may be further combined using the CSX-1641s cascading capability.

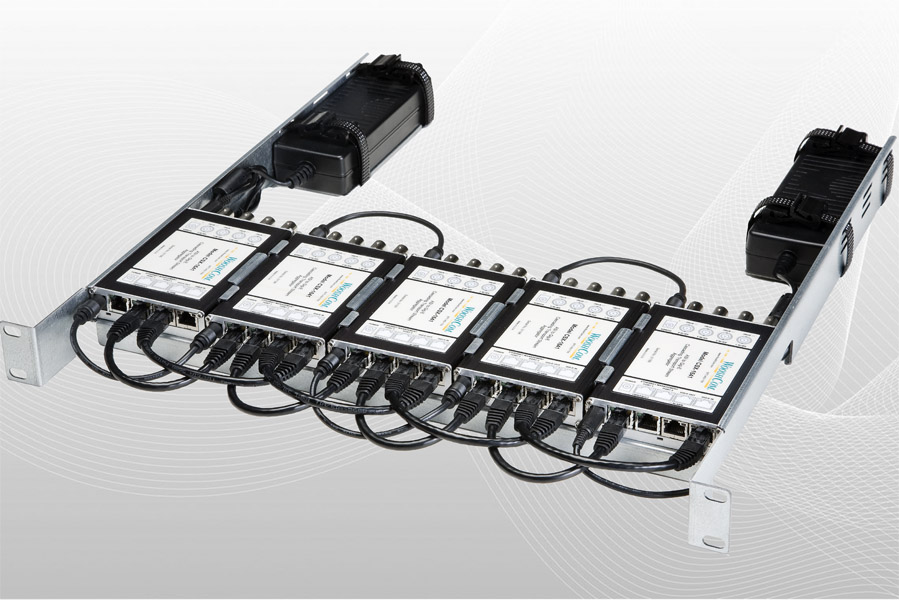

The SHF-005 1U Chassis will accommodate up to 5 CSX-1641 modules thereby supporting from 4 to 20 ASI ports. The entire chassis may me managed by a single Ethernet connection.

Dual redundant power supplies are supported by this chassis providing power from an AC or a -48VDC source. Power supplies may be field replaced by a headend technician without taking any of the CSX-1641 modules out of service.  This enables a power supply fault to be rectified while providing continuous service to your customers.



The flexibility to cascade or not cascade devices provides operators the opportunity to sub-divide a chassis into multiple ASI aggregation groups each with their own Gig-E output. Bandwidth usage on each Gig-E may thereby be optimized.

WooshCom's proprietary Fixed Rate Null Packet Filtering algorithm is the only Null Packet filtering algorithm on an aggregator in the marketplace which provides an MPEG complaint output stream that produces flicker free results on even older set-top boxes. It may be enabled on an ASI port-by-port basis, providing further bandwidth optimization by reducing the number of MPEG NULL packets.

Operators may scale the number of ASI ports to fit their needs alleviating the tendency to overbuy unnecessary ports. Purchasing one additional CSX-1641 module achieves sparing at very low cost. Together these factors yield the lowest deployment cost.



Some of its benefits:

  • Modularity provides usage based configuration - pay only for what you need
  • Low sparing cost keeps total cost low
  • Flicker free video on older set-tops with proprietary Null Packet Filtering
  • Build aggregator of virtually any size using cascading - 4, 8, 12, 16 or 20 ASI ports
  • Easily add ports as needed or move from headend to headend as needs change
  • Arrange for from 1 to 5 outputs from a chassis - you pick
  • Minimize port usage on Ethernet switches
  • Eliminate the need for a switch by aggregating to on Gig-E output

Request Data Sheet

Some of its features:

  • 4 ASI port modules
  • Cascading Gig-E Input port - the key to its flexibility
  • Proprietary Fixed Rate Null Packet Filtering produces MPEG compliant stream
  • Fault Tolerant
  • Dual management ports for daisy chaining - manage chassis via one connection
  • Highest density aggregator in the industry
  • Arrange for from 1 to 5 outputs from a chassis - you pick
  • Minimize port usage on Ethernet switches
  • Eliminate the need for a switch by aggregating to on Gig-E output
